Baselight 600MX-RAIL-OLE – 95,000 Lumens Dimmable Portable Lighting Tower Unit

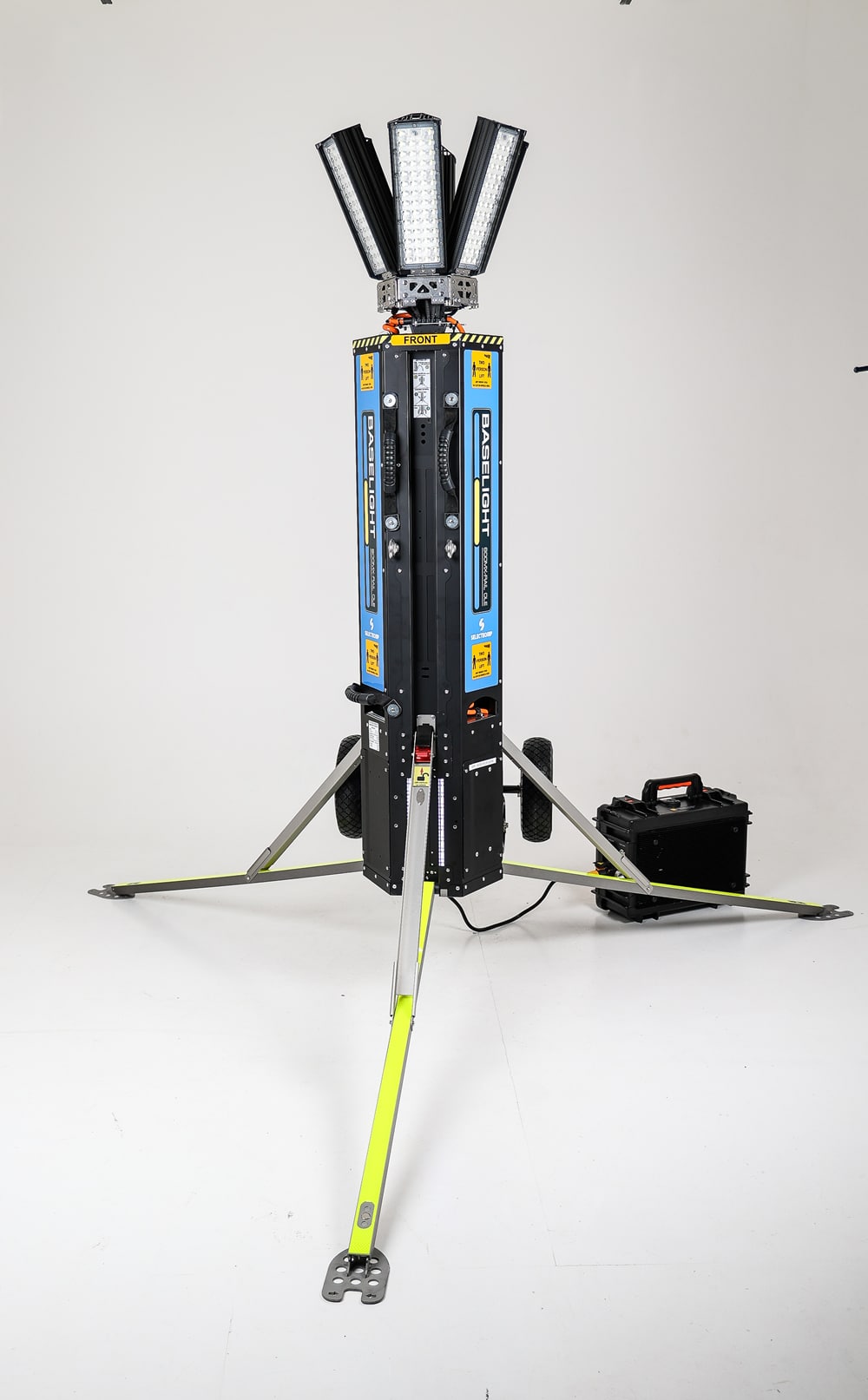

BASELIGHT 600MX Rail OLE Area Lighting System

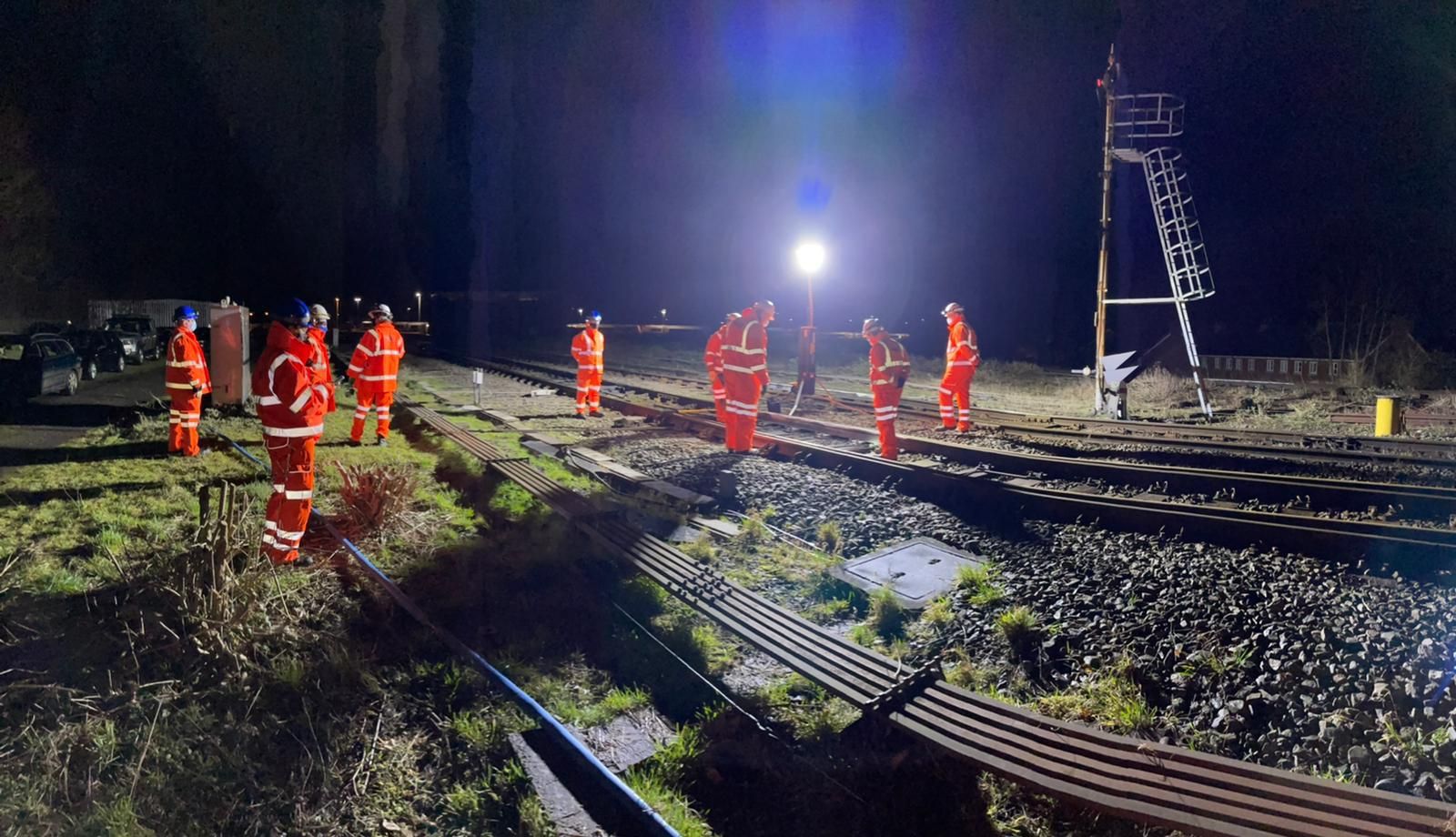

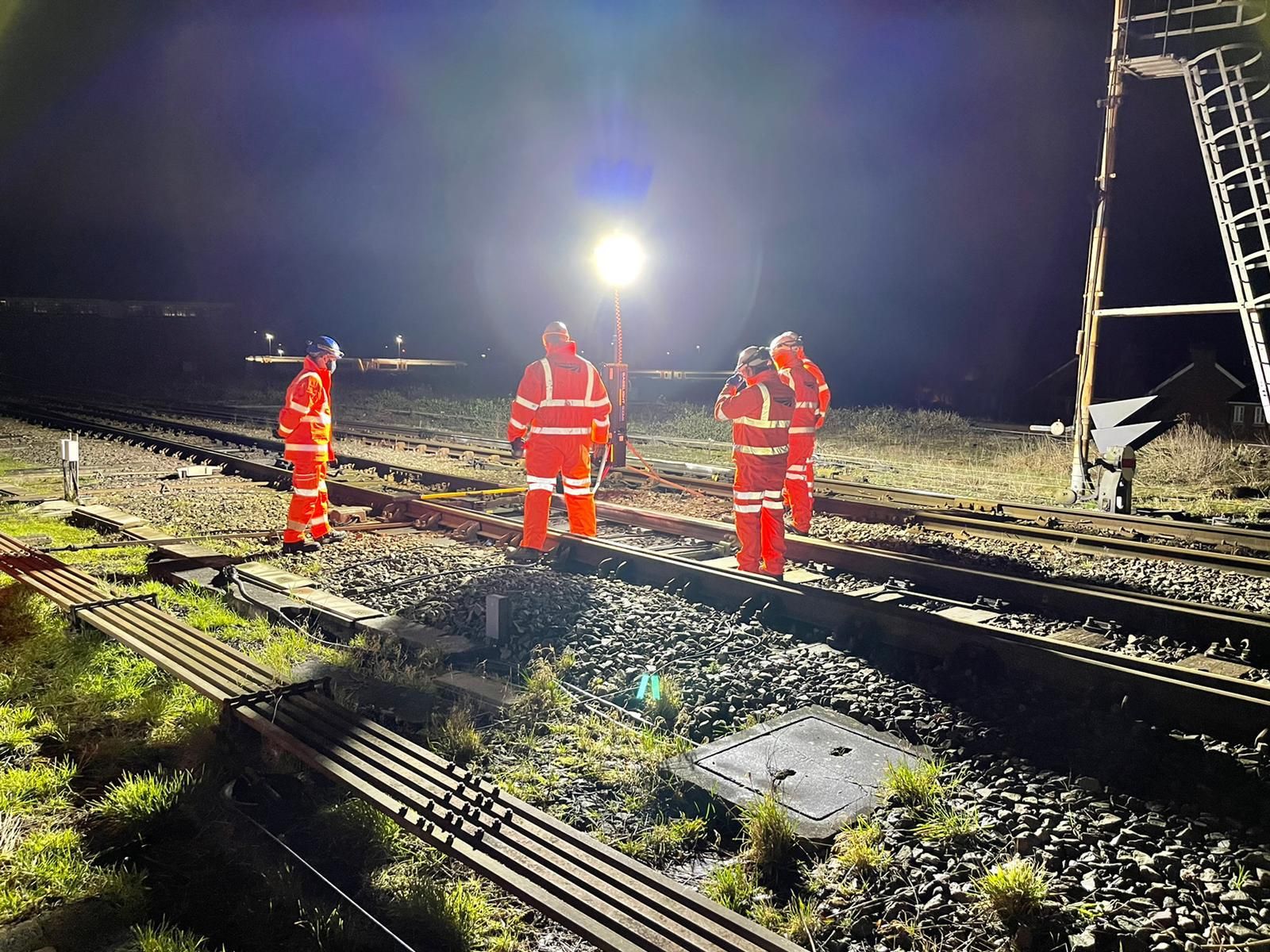

Selectequip has been a crucial supplier of maintenance consumables, signage, and safety supplies to the rail industry among others for over 30 years, and that experience has provided Selectequip with the expertise to aid the designers of the Baselight with aspects that are beneficial to rail workers. After a lengthy process, the Baselight 600MX Rail has become the first and only portable lighting system with Network Rail approval.

In addition to the all the features on the original version of the 600MX, there have been reflective graphics added to the legs of the unit to aid with visibility before and after the light has been turned on. Additionally, the handle position has changed, a lifting eye has been added and the red flashing lights on the original version have changed to white. All of these alterations contributed to Network Rail approval for the product, making the 600MX more suited to safety in rail-specific environments.

One of these is specific to the OLE version of the 600MX rail, with the height being fixed at 2m to ensure safe distance between the top of the unit and overhead lines, therefore significantly reducing the risk of ARC flash. Often, workers can be susceptible to ARC flash injuries with temperatures from this type of electrical explosion sometimes reaching up to four times the temperature of the surface of the sun.

600MX Rail OLE Features

• Network Rail Approved
• Zero emission

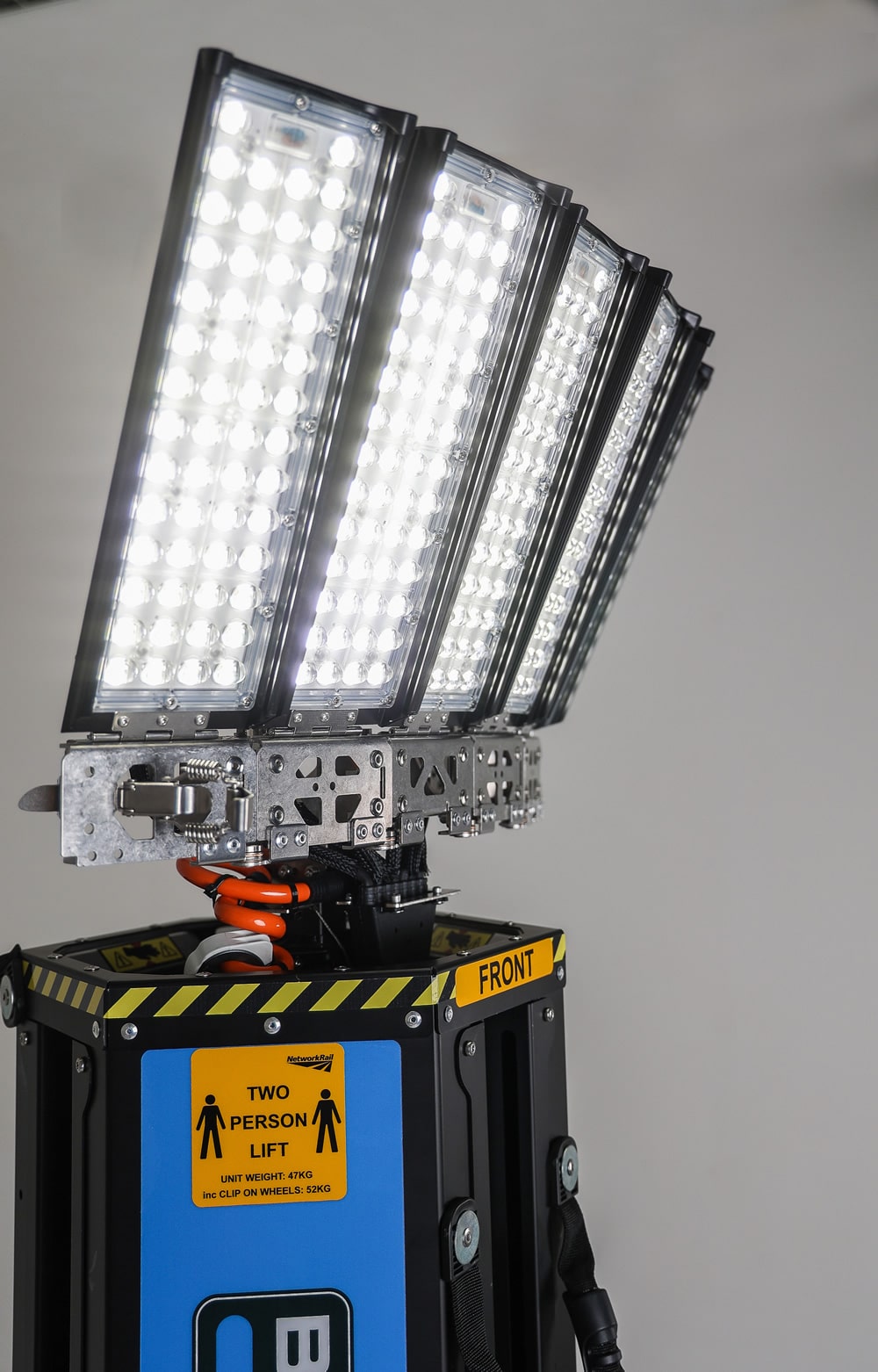

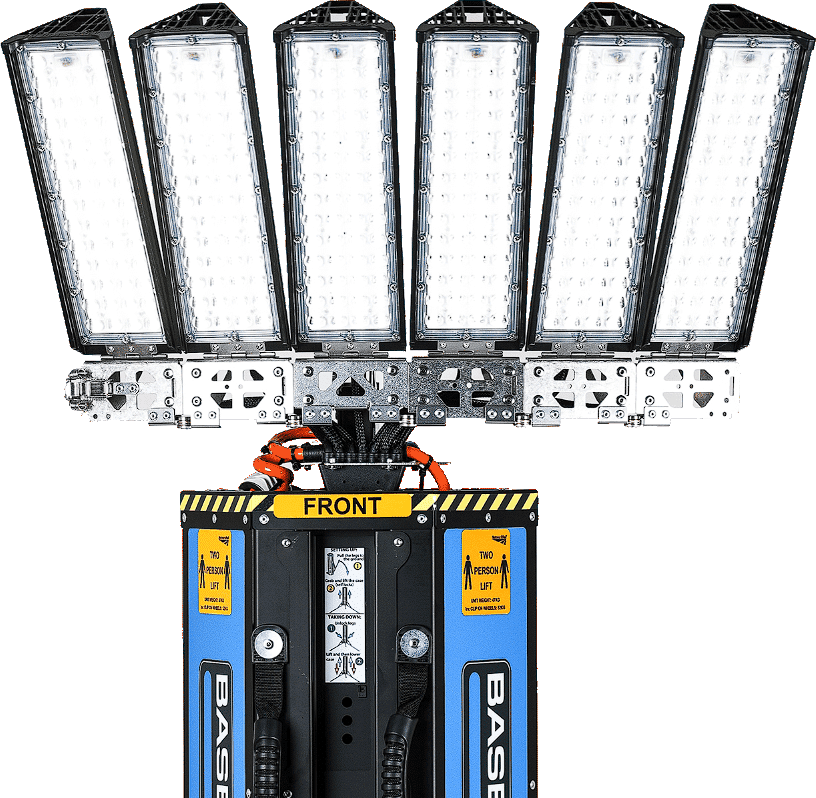

• 95,000 lumens – Half a football pitch of light using just 620W and dimmable to 20W

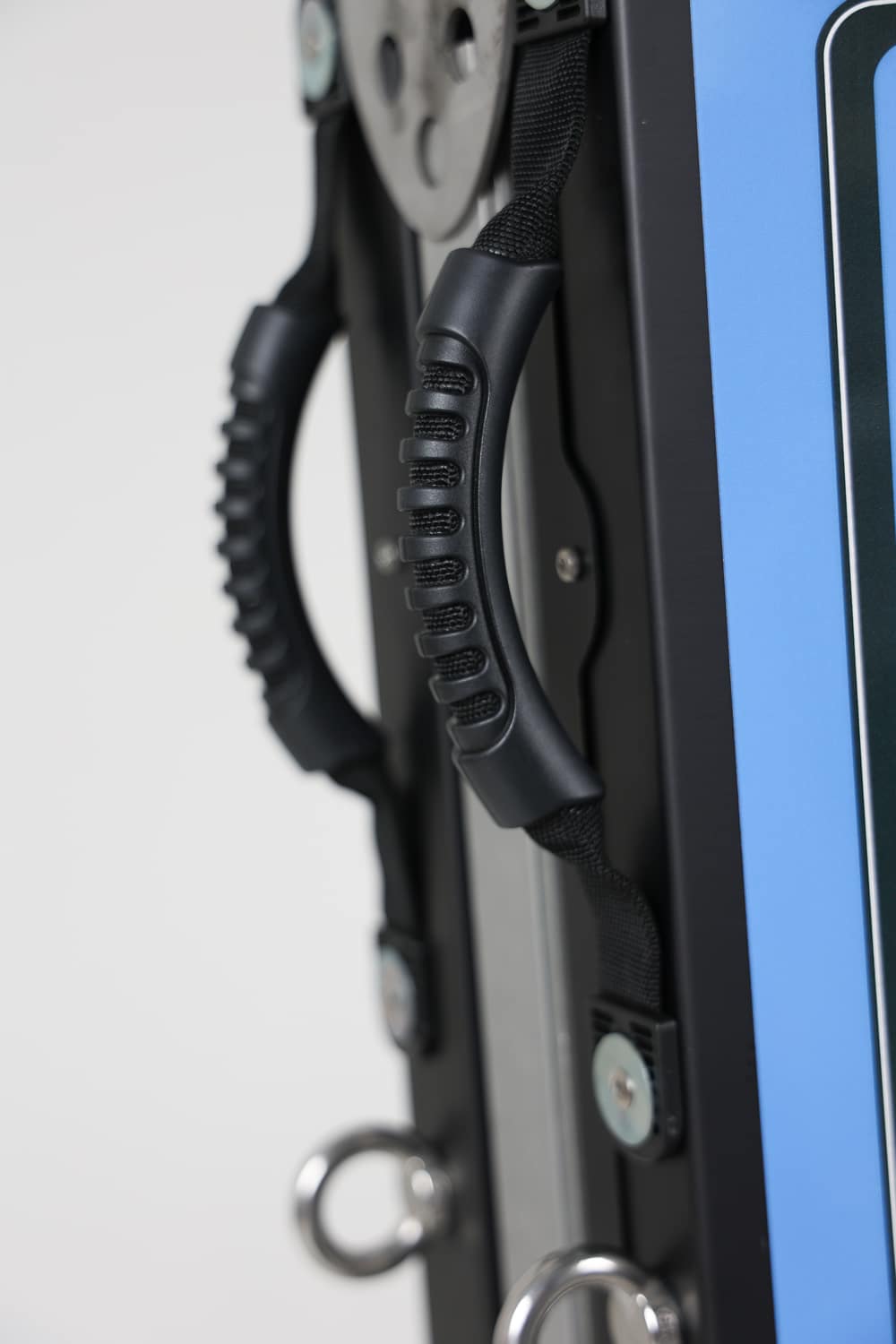

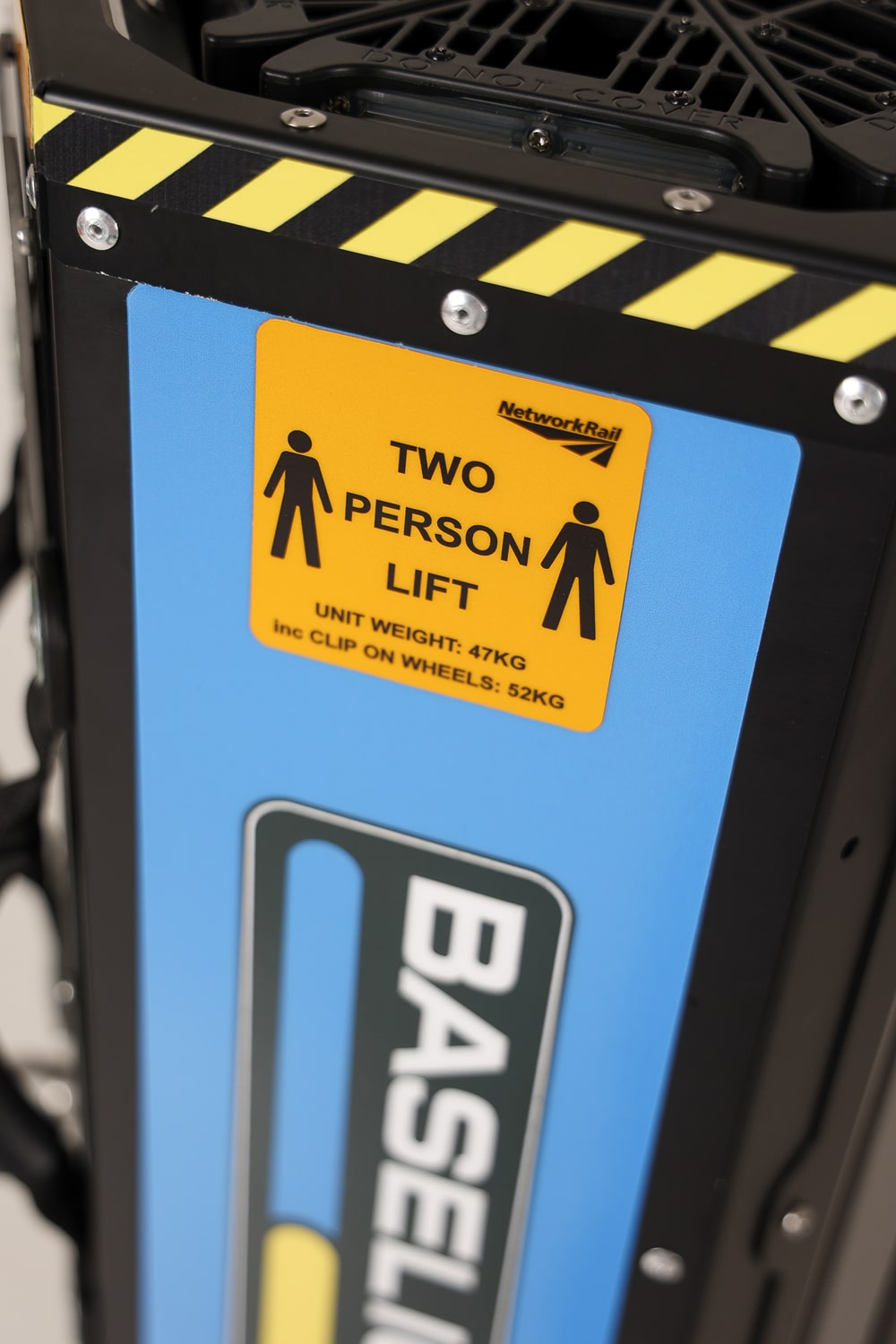

• Ergonomically placed lifting handles – Strategically placed to enable 2 person lift

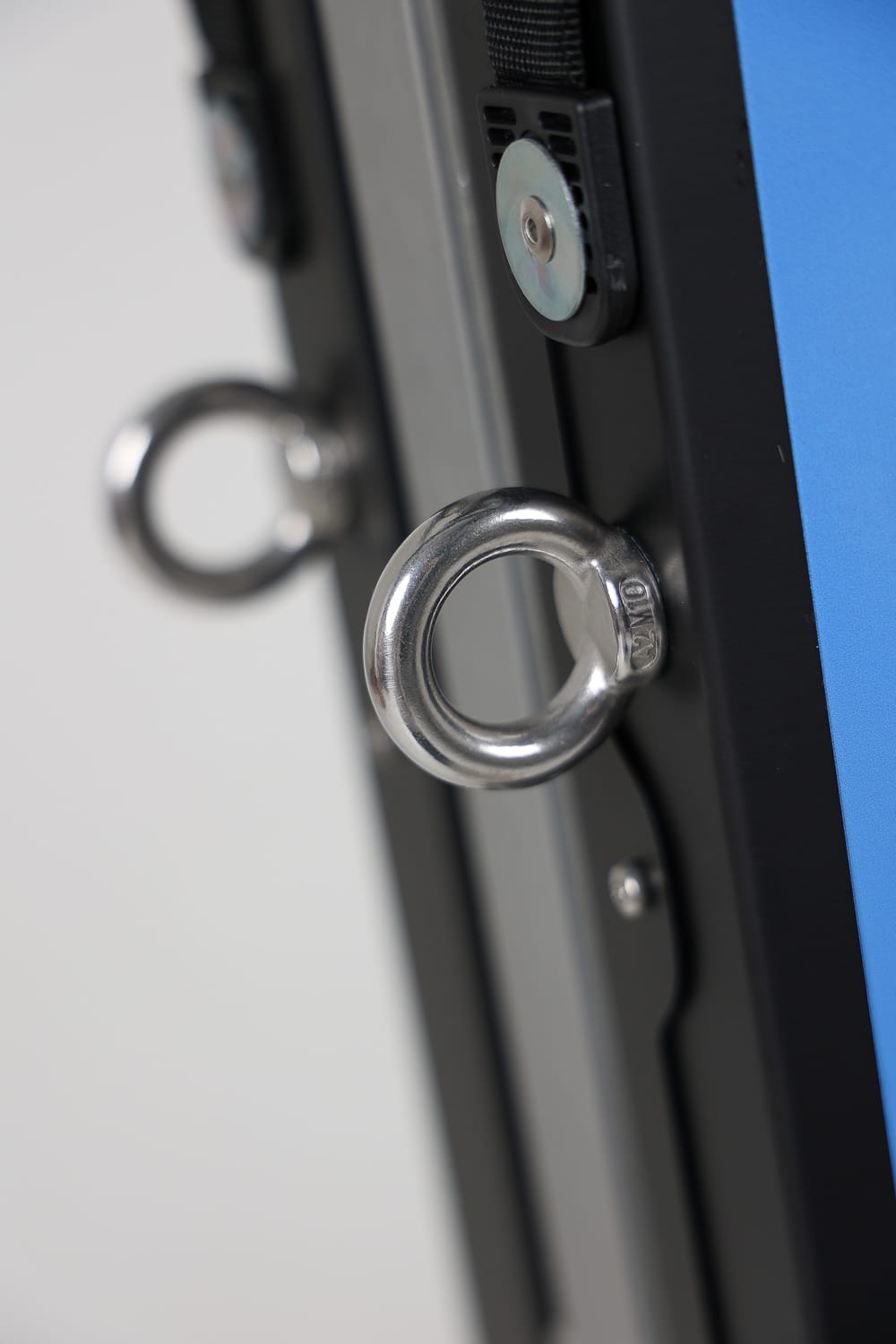

• Lifting eyes provide a secure and robust connection when lifting with machinery.
• IP65 waterproof
• Automatic Mast – Fully automated features of the Baselight 600MX enable a rapid deployment. Retractable, digital mast controlled by onboard computer.

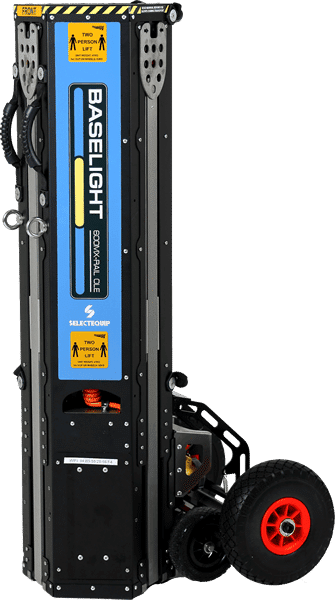

• Supplied with Clip-on off-road wheels for all-terrain easy manoeuvrability
• Adjustable leg height on each leg to provide stability on uneven ground.
• 110V power source required
• Baselight Lithium-ion Battery 2kWh (supplied separately here)

600MX Rail OLE Dimensions & specification

• Weight = 47KG
• Height = 1.2 – 2m
• Maximum Wattage = 20-650w
• Run-time on full power = 3-100hrs
• Lumens = 95,000
